All vehicles

Multirotor · Retired

ICMTC 2025 Quadcopter

Our first competition airframe, and the body Storm grew from

The team's first in-house competition airframe: a carbon-fibre X-quad with 16-inch propellers, an OAK-D camera and a Raspberry Pi 5 with a Coral TPU for onboard flag detection. It reached 150 m and placed 2nd at ICMTC 2025, then was rebuilt around a new body to become Storm.

Season: 2024-25

ICMTC 2025 Quadcopter

Specification

By the numbers

Configuration
Quadcopter, X-config
Design weight
7.47 kg with payload
Propellers
16 in
Frame
2 mm carbon fibre, nylon-CF printed parts
Vision
OAK-D, YOLOv8 on Coral TPU
Peak altitude
150 m (ICMTC 2025)

Footage

In the air

Onboard view from the ICMTC 2025 mission.

Gallery

Photos

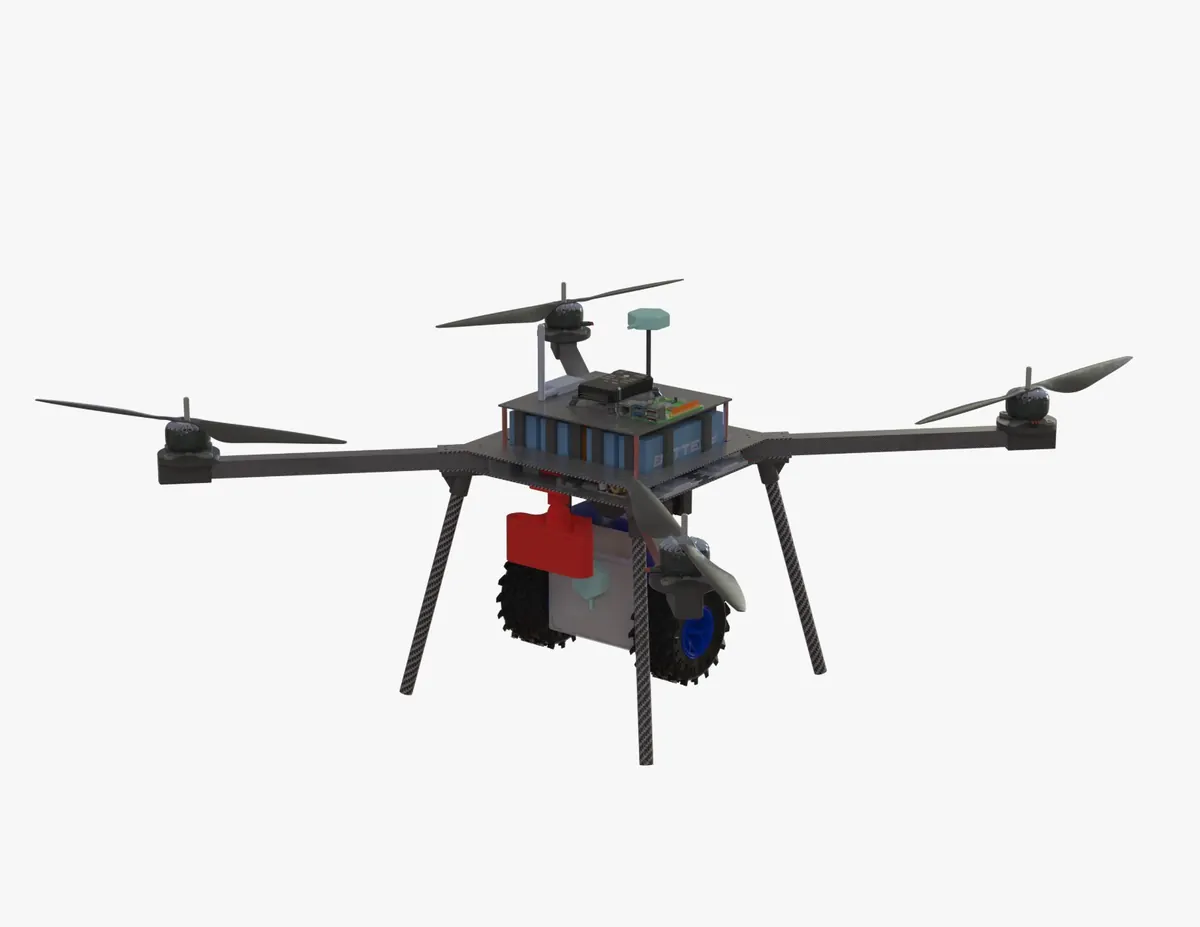

  • CAD render of the 2025 quadcopter with the UGV underneath

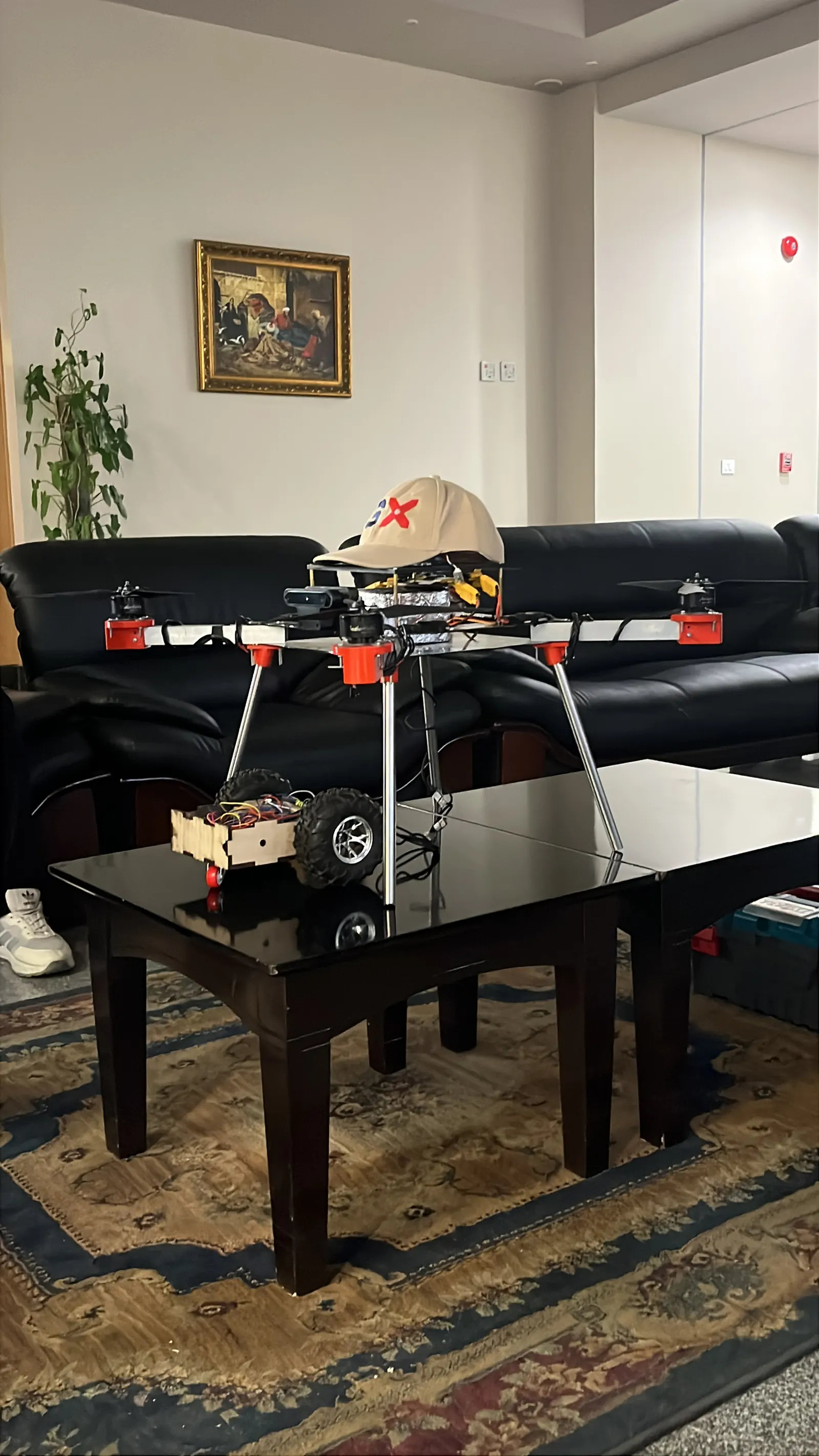

  • The 2025 quadcopter with its UGV mounted underneath
  • The team at ICMTC 2025

Side project

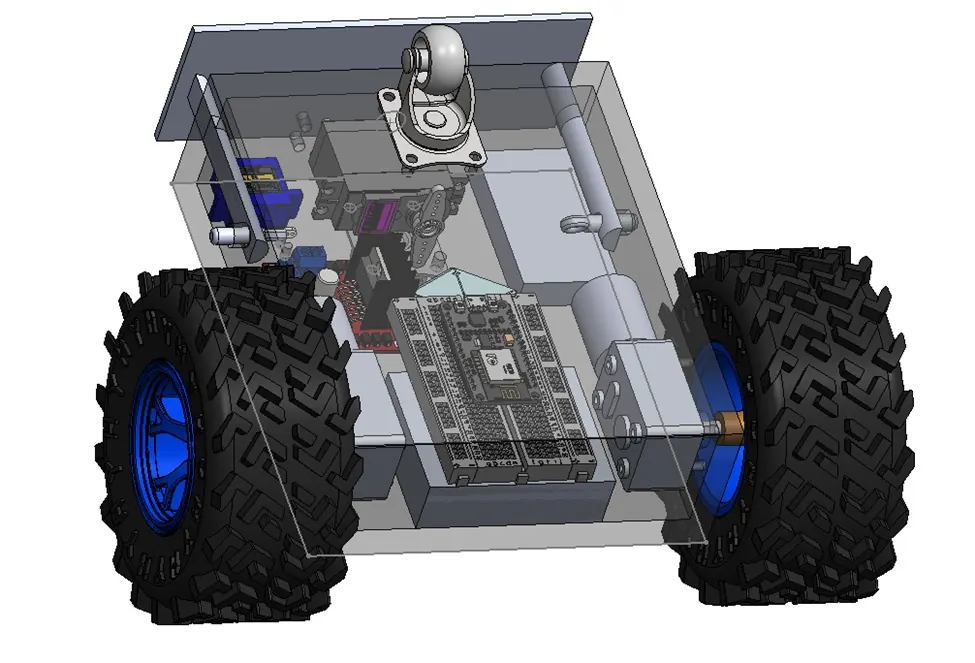

ICMTC 2025 UGV

A two-wheel ground vehicle carried under the drone and lowered on a motorised winch or released after landing, then driven autonomously. It used its own motor torque to right itself after an imperfect landing.

ICMTC 2025 UGV

Record

Competition history

  • ICMTC 20252nd place
